Connector Functions and Applications: From Basics to Advanced Selection
1. Core Functions of Connectors
Connectors are critical components in electronic, electrical, and mechanical systems, with the following primary functions:
① Electrical Signal Transmission
-
Establish stable electrical pathways between PCBs, cables, and devices
-
Minimize signal loss for efficient power/data transfer (e.g., USB, HDMI connectors)
② Mechanical Connection & Secure Attachment
-
Provide reliable physical coupling to prevent accidental disconnection (e.g., M12/M8 industrial connectors)
-
Vibration-resistant and dustproof designs (IP67/IP68-rated)
③ Modular Design Support
-
Enable quick part replacement, reducing maintenance costs (e.g., hot-swappable server power connectors)
④ Environmental Durability
-
High-temperature resistance (e.g., automotive connectors withstand -40°C to 125°C)
-
Corrosion protection (e.g., gold-plated contacts for marine applications)
2. Major Connector Types & Applications
| Type | Typical Applications | Examples |
|---|---|---|

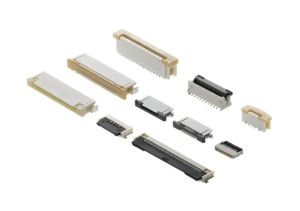

| Board-to-Board | Smartphones, IoT devices | FPC connectors, BTB connectors |
| Wire-to-Board | Home appliances, industrial controls | JST, Molex terminals |
| Circular Connectors | Military, aerospace | MIL-DTL-38999 series |
| Rectangular Connectors | Data centers, automotive electronics | D-Sub, RJ45 |
| Fiber Optic Connectors | Telecom, medical equipment | LC, SC, MPO connectors |
3. How to Select High-Reliability Connectors?
Key Selection Criteria
✅ Current/Voltage Requirements (e.g., EV high-voltage connectors for 48V+ systems)
✅ Durability (industrial connectors often rated for 5,000+ mating cycles)
✅ Environmental Protection (IP ratings, chemical resistance)
✅ Certifications (UL, IEC, AEC-Q200, etc.)
Common Failure Modes & Solutions
-
Poor Contact → Use gold/silver-plated terminals
-
Mechanical Breakage → Reinforced housing materials (e.g., PPS plastic)
-
Thermal Degradation → LCP or high-temperature nylon insulators
4. Industry-Specific Solutions
① Automotive Electronics
-
EV High-Voltage Connectors: Support 800V fast charging (e.g., TE Connectivity’s HVA800 series)
-
RF Connectors: For 5G V2X communication
② Industrial Automation
-
M12/M23 Connectors: Compatible with PROFINET, EtherCAT protocols
-
EMI Shielding: For inverters and servo systems
③ Consumer Electronics
-
Ultra-Thin BTB Connectors: Foldable smartphone hinge applications
-
Waterproof USB-C: Outdoor device interfaces
5. Connector Technology Trends (2024)
-
High-Speed Data Transfer: USB4 v2.0, PCIe 5.0 connectors
-
Wireless Alternatives: Qi2 magnetic charging interfaces
-
Sustainable Manufacturing: Halogen-free, recyclable materials
